Q4 solutions for enhancing the performance of visual displays.

Digital Mirror
Controller Unit

Q4’s DMCU provides a highly stable and reliable method of controlling and protecting collimated displays metalized film mirrors.

Show me more

Projector and
Monitor Upgrades

Q4 provides upgrades and modernizations to projectors and collimating displays fitted to a number of devices and various global training centers.

Show me more

Master
Controller

Master Controller | Q4 Collimated DisplayQ4 developed the master controller as a single platform solution to provide control and adjustment for all aspects of the Visual Display System.

Show me more

TrueVue®

TruVue® | Q4 Collimated DisplayQ4’s market-leading, automatic alignment system ensures a highly accurate, fully-optimized visual display image for each and every training experience.

Show me more

System Control Unit

System Control Unit | Q4Q4’s SCU is a high-performance, universal display and projector management system capable of controlling and optimizing the performance of any projector and related visual image.

Show me more

Digital Sphere Slide (DSS)

Digital Sphere Slide | Q4 Collimated DisplayThe Q4 DSS provides a highly accurate and flexible visual reference capability that produces precisely positioned reference points for projector and Head-Up Display (HUD) alignment.

Show me more

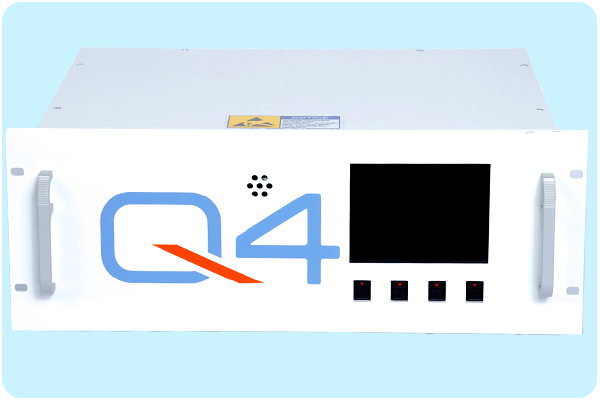

Digital Mirror Controller Unit

Q4’s DMCU provides a highly stable and reliable method of controlling and protecting collimated displays metalized film mirrors.

The innovative single line replaceable unit (LRU) design provides ease of installation and integration with all manufacturers’ metalized film mirrors.

Featuring single button operation, multiple layered safety system, built-in automatic startup, and control system, Q4’s high performance DMCU is a world-class solution that offers an unprecedented level of failure protection ensuring maximized mirror life.

  • Auto start
  • Single Line Replaceable Unit (LRU)
  • Data and status logs
  • Email Reporting
  • Hands-free operation
  • Remote view option
  • Low power consumption
  • Multi-voltage — 100-240Vac
Digital Mirror Controller Unit | Collimated Display

Master Controller

Inspired by a vision in which the entire display system is approached as a complete, homogenous system, Q4 developed a single platform solution to provide control and adjustment for all aspects of the Visual Display System.

The Q4 master controller can be used to replace a number of separate systems within the VDS.

  • Integrated, single system controller
  • On-site time decreased
  • Costs reduced
  • Compatible with all projectors and image generators
Master Controller | Collimated Display

TruVue®

TrueVue calibration is a totally independent operation, enabling integration with any make, model or variant of image generator and projector and takes only 30 seconds per channel. TrueVue meets or exceeds the requirements of the highly demanding ICAO Edition III geometry criteria.

  • Reduce maintenance cost
  • Ease of operation
  • Image generation and projector independent
TruVue®| Collimated Display

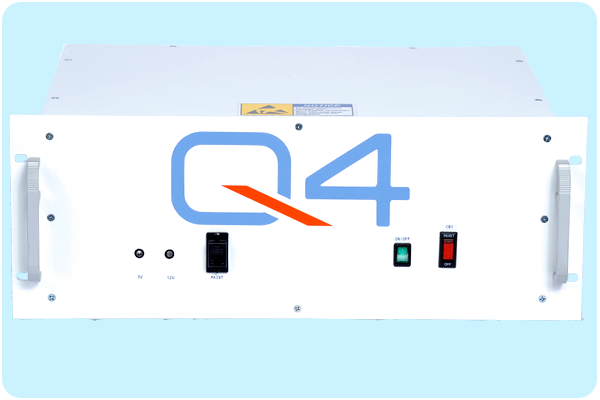

System Control Unit

Q4’s System Controller Unit (SCU) is a high-performance, universal display and projector management system, capable of controlling and optimizing the performance of any projector and related visual image.

The highly versatile SCU can be integrated with any manufacturer’s image generator, as well as all makes and models of projectors. The single line replacement unit modular design, together with an easy to use graphical user interface, ensures ease of integration and operation with any existing display system.

Providing discrete control of projector operation and a user-friendly, common platform architecture, the SCU has the ability to significantly increase the dynamic performance of a projector system.

The Q4 System Controller Unit offers unmatched projector control capability and provides the opportunity to maximize the performance of any projector system.

  • Common interface for multiple display types
  • Increases dynamic display performance
  • Single line replacement unit

  • Modular design
  • Multi voltage input – 100-240Vac
System Control Unit | Collimated Display

Digital Sphere Slide (DSS)

The Q4 DSS provides a highly accurate and flexible visual reference capability that produces precisely positioned reference points for projector and Head-Up Display (HUD) alignment.

The market-leading reference test pattern hardware can be installed and integrated onto any existing display system as an upgrade or standalone reference pattern generator. The alignment pattern produced is fully compliant with all regulatory authority approval criteria including the highly stringent ICAO Edition III.

With extensive programmable functionality, the Q4 DSS enables the system to display customized reference marks and multiple color options for additional clarity and assistance with alignments. The highly accurate reference slide data is securely stored and locked within non-volatile firmware.

The Q4 DSS provides the highest accuracy and most capable reference test pattern available ensuring the alignment of the displayed image is of the highest performance and quality.

  • Market-leading accuracy

  • Single LRU
  • Securely stored/locked reference data

  • Hands free operation

  • Multi voltage input – 100-240Vac

Digital Sphere Slide | Collimated Display
